상세 정보 |
|||
| 사이즈 시리즈: | 14,17,20,25,32 | 감소 비율: | 50,80,100,120 |
|---|---|---|---|
| 산출 토크: | 3.5Nm-160Nm | 산출 속도: | 30-200rpm |
| 평가된 입력 속도: | 3000-3500rpm | 최대 입력 속도: | 8000rpm |
| 수명: | 10000-15000hours | 특화: | 받아들일 수 있습니다 |
| 강조하다: | 원축 하모닉 구동 환원제,3.5Nm 하모닉 구동 환원제,원축 어울림 기어 환원제 |
||
제품 설명

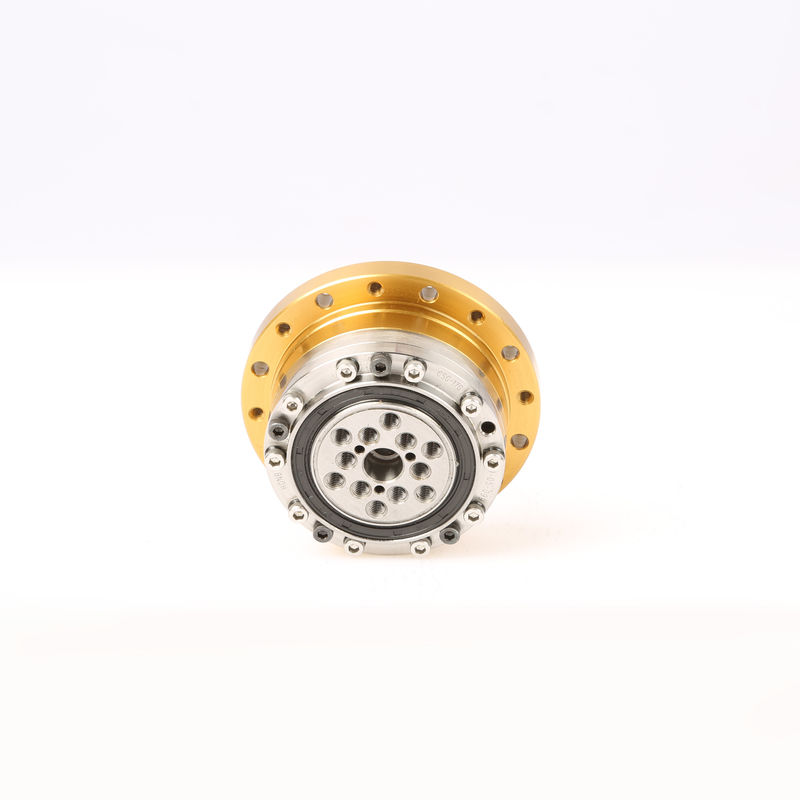

Harmonic Driver Reducer Solid Shaft / Hollow Shaft Output Torque 3.5-160Nm for Printing Machine
PRODUCT FEATURESS
Wanshsin harmonic reducer has a wide transmission ratio range, a large number of meshing teeth, a large carrying capacity, high movement accuracy, smooth movement, no impact, low noise, adjustable tooth side clearance, simple structure, small size, light weight, and high transmission efficiency, good coaxiality, can achieve high-speed movement and other characteristics.
Mainly used in all kinds of light industrial robots, robotic arms, printing, papermaking machinery, medical machinery, measurement, analysis, testing machines, large telescopes, precision packaging machinery, semiconductor manufacturing equipment, FPD manufacturing equipment, communication devices, aerospace machinery, CNC Precision transmission systems that require volume, such as machine tools, radars, and various satellite ground stations, etc.
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping |
Maximum Allowed Average Load Torque |
Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec |
Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
