상세 정보 |
|||
| 잎 직경: | 3.6m, 7.3m | 입력 전원: | 0.55kW,1.5kW |
|---|---|---|---|
| 산출 속도 범위: | 5-90rpm | 전부하 공기 용적: | 9000-14500 m3/min |
| 소음: | ≤39 dB | 격리형 등급: | F |
| 보호 그레이드: | IP56 | 색: | 주문 제작된 하얀 / 노랑색 / |
| 전압: | 380V/220V | 보증: | 2년이요 |
| 하이 라이트: | 지름 3.6m HVLS 천정 선풍기,12ft HVLS 천정 선풍기,12ft 많은 양 저속도 팬 |
||
제품 설명

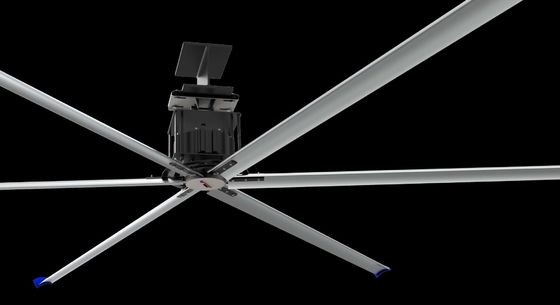

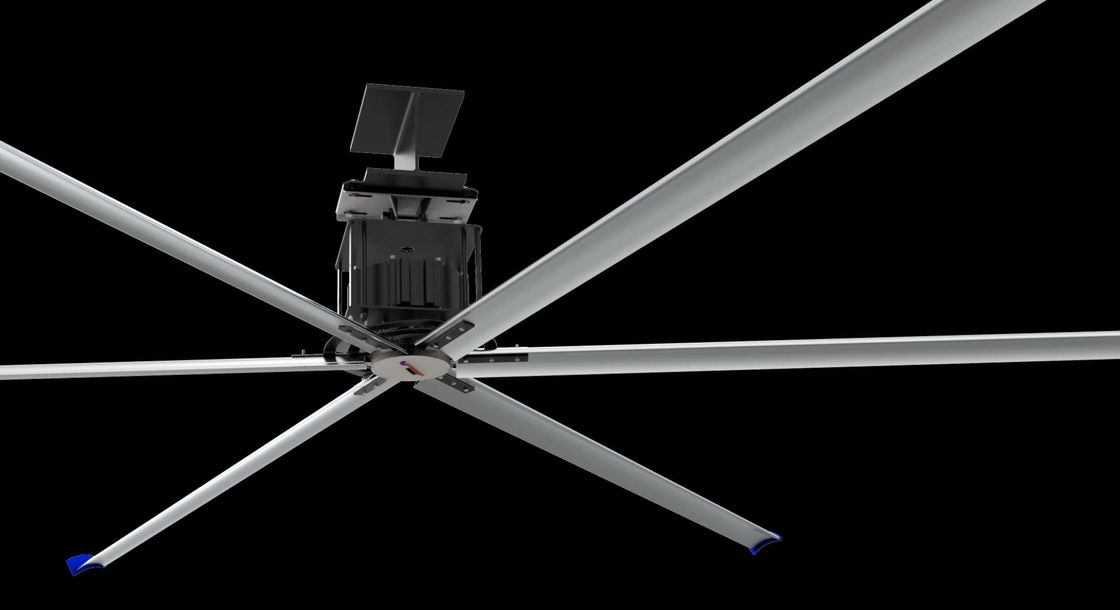

HVLS Ceiling Fan Blade Diameter 3.6m 7.3m 12ft 24ft AC DC 3 Phase Energy Saving
1 Small Volume
The total length of motor + reducer is 435mm, compared with common industrial ceiling fans in the market the total length is 55mm shorter, greatly reducing the installation space.
2 Light Weight
The total weight of motor + reducer is only 35KG,which is 10KG lighter than the common industrial ceiling fan in the market.
3 High Transmission efficiency
Transmission efficiency≥97%, better performance compared with most of the common industrial ceiling fan motors in the market.
4 Strong Loading Capacity
Strong bearing capacity: the output torque is up to 330Nm which is more 20% higher than the common industrial ceiling fan in the market and bring more air volume.
5 Good Sealing
Double oil seal is adopted, which is more reliable than the common motors in the market with single oil seal.
Product Features
| Blade Diameter | 3.6 m | 7.3 m |
| Input Power | 0.55 kW | 1.5 kW |
| Full Load Air Volume | 9000 m3/min | 14500 m3/min |
| Speed Range | 10-90 rpm | 5-55 rpm |
| Weight | 48.8 Kg | 130 Kg |
| Noise | ≤39 dB | ≤39 dB |
| Isolating Grade | F | F |
| Protection Level | IP56 | IP56 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
