상세 정보 |
|||
| 타입: | 다중 기능 속도제어기 | 속도 규칙: | 패널 키 / 패널 전위차계 |
|---|---|---|---|
| 주파수: | 50Hz/60Hz | 적용 가능한 원동력: | 6W-200W |
| 운영하는 축전기: | 붙박이 | 속도 범위: | 50Hz : 90-1300rpm, 60Hz : 90-1600rpm |
| 전압: | 한 개의 단계 220V AC | 속도 변화의 금리: | 5% |
| 하이 라이트: | 4개 속도 ISO9001 기어 전동기 속도 제어 장치,220V 단일 상 기어 전동기 속도 제어 장치,ISO9001 220V 단일 상 전동기 속도 제어 |
||
제품 설명

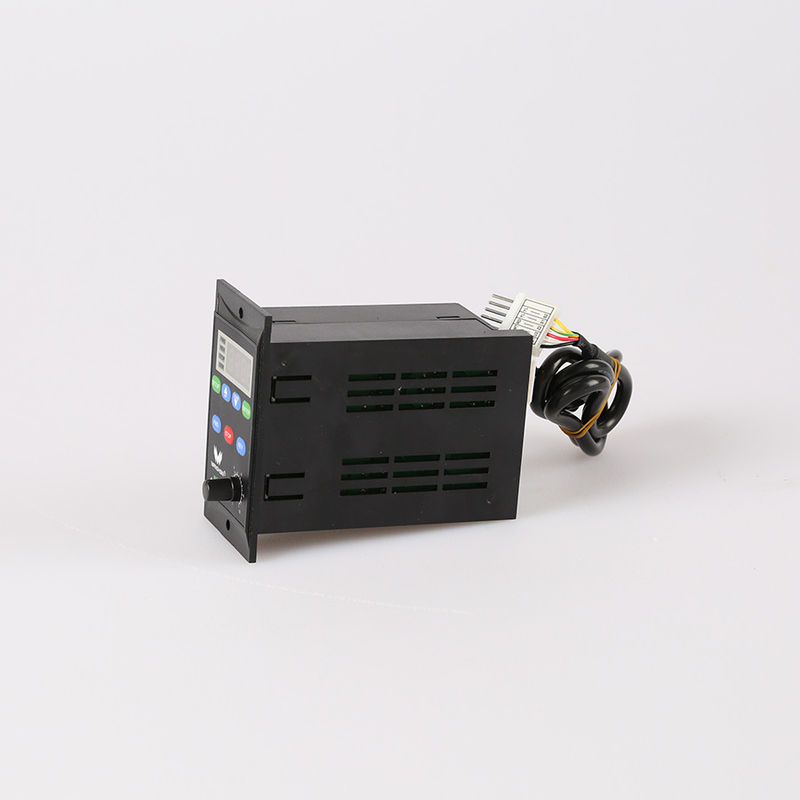

WX-K Multi-Function Gear Motor Speed Controller 4 Speeds Single Phase 220V AC
Product Features
1 Achieve continuously variable transmission in a wide range, when combined with variable speed motor.
2 Feature-rich, enabling slow acceleration, slow deceleration and motor stall protection.
3 The capacitor for speed governor running is mounted directly inside the speed controller, featuring neat and convenient wiring.
Type parameter table
| Type | WS-P | WS-L | WX-K |
| Installation method | Panel type | Digital display panel type | Multi-Function digital panel type |
| Speed control method | Panel Potentiometer | Panel Key/Panel Potentiometer | Panel Key/Panel Potentiometer |
| Power voltage | Single-phase 220V AC | Single-phase 220V AC | Single-phase 220V AC |
| Functions |
Speed control, slow deceleration, slow acceleration, locked rotor protection |
Speed control, slow deceleration, slow acceleration, electromagnetic brake, locked rotor protection, panel control forward and reverse, speed display, panel buttons, control with memory, magnification setting and external switches K1 and K2 can be directly connected to PLC control. | Speed control, slow acceleration, slow deceleration, locked-rotor protection, control forward and reverse rotation, speed display, panel button control with memory, magnification setting, 4 speeds, power failure electromagnetic brake stop, RST reset function, 0~10V simulation quantity control and external switches K1 and K2 can be directly connected to PLC control. |
|
Applicable motor power range |
6W~200W | ||
| Running capacitor | Built-in | ||
| Power frequency | 50/60Hz | ||
| Speed range | 50Hz:90~1300r/min 60Hz:90~1600r/min | ||
| Speed variation rate | 5% | ||
| Electromagnetic brake time | 0.4 seconds | ||
| Applicableenvironment | -10℃~+40℃ non-freeze;<85% non-condensation | ||
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
