상세 정보 |
|||
| 감소 비율: | 50,80,100,120 | 산출 토크: | 3.5Nm-160Nm |
|---|---|---|---|
| 평가된 입력 속도: | 3000-3500rpm | 사이즈 시리즈: | 14,17,20,25,32 |
| 맞물림 배열: | 조화되는 | 재료: | 스테인레스 강 |
| 산출 갱구: | 단단한 샤프트 출력 / 원축 출력 | 특화: | 받아들일 수 있습니다 |
| 하이 라이트: | 비율 1 : 500 고속도 감소 톱니바퀴 통,어울림 기어 고속도 감소 톱니바퀴 통,비율 1 : 500번 조화하는 기어 하강기 |
||
제품 설명

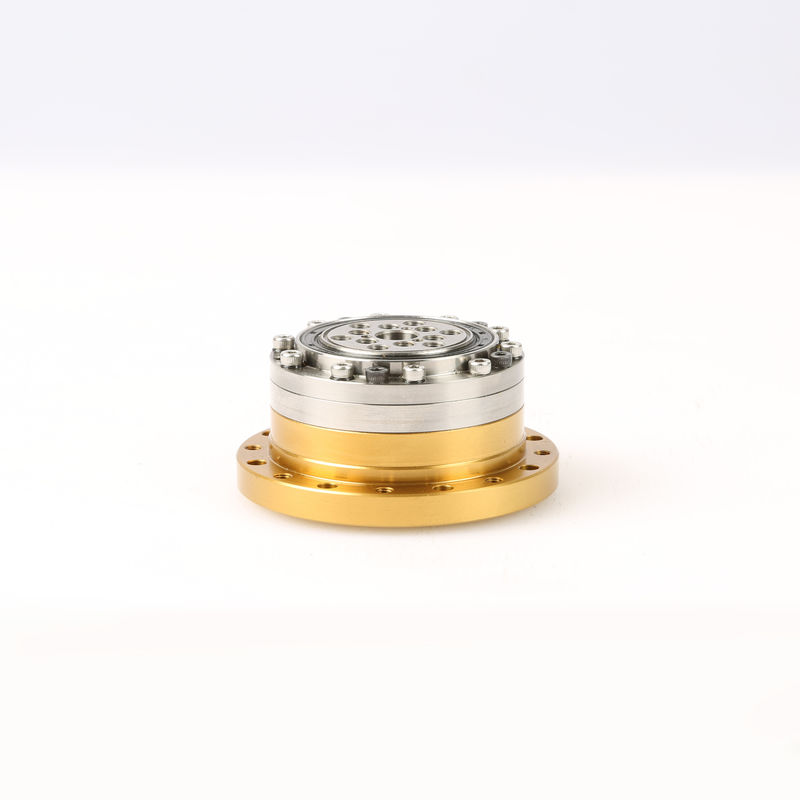

Harmonic Reducer Output Torque 3.5-160Nm Size Series 14/17/20/25/32 for Exoskeleton
PRODUCT FEATURESS
1. High accuracy: a good percentage of its teeth are meshed at all times, and are engaged at two zones 180 degrees apart. This means influences of tooth pitch errors and accumulated pitch errors on rotational accuracy are neutralized, which assures high positional and rotational accuracy.
2. High speed reduction ratio: a harmonic gear reducer has high single-stage reduction ratios of 1/30-1/500. Three basic components along same axle without complex structures can provide high reduction ratios.
3. High torque capacity:each tooth is subjected to a negligible amount of force yet provides a high torque capacity because of the way the teeth come into contact with each other and because a good percentage of the teeth in the flexspline are engaged at al times.
4. Small-sized and light weight: while being less the size of conventional gearing mechanisms and less the weight, the harmonic gear reducer provides the same levels of torque and speed reduction ratios as its conventional counterparts enabling machinery and equipment to be made smaller and lighter.
5. Superior efficiency and long life time.
6. Quiet and minimal vibration operation.
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping |
Maximum Allowed Average Load Torque |
Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec |
Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
